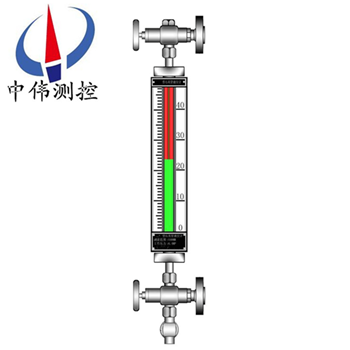

High temperature quartz tube level gauge

•

High temperature quartz tube level meter is the use of natural light in the liquid fold, reflection …

Products overview:

ZW - UGS seriesHigh temperature type quartz tube liquid level meterIs using a new technology developed at home and abroad.For two kinds of different medium density interface measurement, can choose three color interface quartz tube liquid level meter.Three color interface quartz tube liquid level meter is designed by using the principle of buoyancy and the proportion difference, quartz tube in the small float suspended in the boundary of two kinds of medium section, due to float in black, upper and lower part of the liquid color is different, so the display eye-catching.So as to solve the has plagued in petrochemical process distinguish between two kinds of hybrid medium interface problem.It is the ideal direct reading type level gauge at home and abroad.

Second, the working principle:

ZW - UGS series high temperature type special special-shaped quartz tube liquid level meter is mainly composed of quartz glass tube, filter the green glass, the table body, the upper and lower valve and drain valve.Liquid level meter and the vessel flange connectors, through the optical principle of refraction and reflection of natural light in the liquid, with the help of red, green glass screen liquid brings green, red gas phase.Red, green and show clearly, you can observe and night view at a distance.

Working principle, because of the different liquid light's difference and the relationship between the density difference, using color level of optics refraction principle, achieve the purpose of the three color display interface, and the interface between the two kinds of the liquid surface buoy floating in a color, make the two distinct interface.

Applications:

ZW - UGS series type high temperature quartz tube liquid level meter is developed by domestic and foreign high-tech and becomes, upgrading of ordinary glass is liquid products, it is widely used in petroleum, chemical industry, electric power, metallurgy, etc all kinds of transparent liquid containers and boiler, such as: water, gas, liquefied gas, liquid ammonia, propylene, propane, propylene, aromatics, Ann the level measurement of the oil products and chemical raw materials such as acid, at the same time apply to the interface of two different medium density measurement.

Four, the main features:

1, liquid and gas phase show clear, no blind area, sealed performance is good;

2, resistance to high temperature high pressure;

3 long, thick, light weight, was ordered to, without leakage;

4, simple structure, convenient installation and maintenance, corrosion resistance, without power, explosion-proof.

Five, the technical parameters:

1, a special 99.99% SiO2 transparent quartz tube, its deformation point 1077 ℃, softening point 1730 ℃.

2 1170 kg/cm3, compression strength and expansion system 5.5 x 10-7.After the special craft processing with high temperature, high pressure resistance and excellent mechanical properties.

3, working pressure: 1.6, 2.5, 4.0, 6.4, 10.0 MPa

4, work temperature: < 520 ℃

5, measurement range L: measuring range set by the centre distance and: 300, 500, 800, 1100, 1400, 1700, 2000 mm, special specifications, please indicate the size.

6, heating steam jacket: work pressure 0.6 MPa, to take over the external thread size G1/2 ".

7, interface flange: using chemical HG20592 awarded in 1997 ~ 20635-97 standard flange.Flange size 3/4 ", DN25, such as users need to use other criteria (such as GB, ANSI standard) can be designed according to user needs.Steel ball automatic confining pressure: 15 ~ 30 kg weight greater than 0.2 MPa.

Six, operate (transmitting) device technical parameters:

1, remote transmission device range: 0-15000 - mm: in the same device, due to the large range at the same time use many sets of the same type of float level meter, far eastone part can use many sets of the same type of float liquid level gauge series, remote transmission part can be used in series, but with a crime in order to be marked.

2, precision: plus or minus 10 mm

3, back to the poor: plus or minus 10 mm

4, the output signal: 4-20 m a. d. C

5, far eastone zui big distance: 3 km, laying cable capacitance and inductance zui big value does not exceed 0.04 UF, 2 mh

6, power supply voltage: 24 v DC, 220 v. AC50Hz (float liquid level gauge equipped with 24 v DC regulated power supply)

7, environment temperature: - 40 ~ + 60 ℃

8, environmental vibration, frequency of 25 hz or less amplitude of 0.05 mm or less

9, load impedance: 250 Ω

10, explosion-proof hose interface: M20 * 1.5 internal thread

11, power consumption: < 1.0 W

12, explosion-proof type, explosion-proof marks: through chemical electrical instrument explosion-proof quality inspection center of qualified.

Seven, alarm technology parameters:

: 1, the power supply voltage, AC 220 v, 50 hz

2, the output signal: two normally open, normally closed switch signal

3, switch contact capacity: 220 v, 2 a

4, the working life: > 5 of 10 square

5, alarm accuracy: + / - 5 mm

6, environment temperature: - 40 ~ + 60 ℃

7, environmental vibration, the amplitude frequency of 25 hz or less 0.5 mm or less

8, explosion-proof type and explosion-proof marks: through chemical explosion-proof electrical instrument inspection of quality supervision, inspection center.Explosion-proof marks dllBT4. Explosion-proof number: CE991009

9, alarm switch explosion-proof hose interface: M20 * 1. 5 internal thread.

Eight, classification and scope of application:

1, general motors has no blind area double color quartz tube liquid level meter:

Is mainly composed of flanged explosion-proof Angle valve, flexible pipe, sheet, special-shaped quartz tube, filter board, drain valve etc.Its characteristic is widely used, beautiful and easy, easy installation, durable.

Applicable to a variety of conditions, the corrosion of carbon steel or 304, 1 c18ni9ti, 316 l licensing media are optional.Such as water, gas, oil and other hydrocarbons, saline solution, dilute acid and other organic and inorganic medium.

2 three color quartz tube liquid level meter, float: special manufacture of small float in the quartz tube floating in liquid-liquid interface, at the same time also can steam the red liquor green indicator level.Suitable for low viscosity medium, such as liquefied petroleum gas - water and light oil - water and chemical solvents.Liquid-liquid medium proportion difference is greater than 0.2 g/cm.

3, floatless three color quartz virtuosos potentiometer: special manufacture of quartz tube can use water and refractive index of oil, with red and green indicate oil and water respectively.Suitable for gasoline, kerosene, diesel oil - water interface instructions.

4, PP anti-corrosion double color quartz tube liquid level meter, mainly composed of flanged PP explosion-proof Angle valve, table, double color quartz tube, screen plate, etc.The main features of which is carbon steel, has high strength, light weight, beautiful and durable, strong anticorrosion performance.Temperature and pressure is not high and allowed for PP corrosion medium are optional, such as power plants, high concentrations of hydrochloric acid and other corrosive medium.

5, fluorine plastic anticorrosive double color quartz tube liquid level meter, mainly by the special lining fluorine plastic tee, table, double color quartz tube, screen plate, etc.Its characteristic is not using carbon steel, not only has high strength, and because the medium was all fluorine plastic isolation, zui strong anticorrosion performance, beautiful appearance.Suitable for almost all the corrosive medium.

Six, storage tank is special wide visual surface double color quartz tube liquid level meter (center distance) :

Due to the limited by the length of the quartz tube, quartz tube liquid level meter is not commonly may do very long, so when the tank liquid level measurement is often made dendritic a communicating pipe, weight big and observation inconvenience.This product use number can be connected with the liquid level meter is clever.Compact structure, light weight, wide, show clear.In low density measurement medium, after specially designed never vaporization phenomenon.Deficiencies are two middle blind area about 40 mm, but because it is double color, according to the blind area affect little.Applicable to the storage tank, including low density media such as liquefied petroleum gas in a variety of media.

Nine, the level of transportation, storage, installation, use and maintenance:

Water level gauge can be used after 1, packaging conventional transportation tool, but should avoid violent vibration and snow and rain erosion directly.

2, water level gauge should be on temperature 0 ~ 40 ℃, relative humidity is not more than 80% of the dry and ventilated indoor and outdoor air should not be mass containing corrosion instrument.

3, water level gauge must be installed vertically, the vertical deviation degree should be less than 3 °.

4, gauge and container should be equipped with stop valve, so that with the dielectric isolation during the cleaning and maintenance.

5, according to media, should be conducted on a regular basis of ontology pipe cleaning, removal of tube of sundry.

Ten, use and replacement items:

1, the quartz tube is mainly used for all kinds of pressure vessel, industrial steam boiler liquid level display.In transport, storage, picking, all need to be careful not to use when putting high hit heavily quartz tube, do not use sharp or rough grind arenaceous kind of items contact quartz tube, maintain the level of play is smooth, transparent, high visibility.

2, the installation of the quartz tube is very simple, it includes the valves, valve, drain valve and the reading of the main color quartz tube, when installed, just need to up and down the valve flange port respectively corresponding to the corresponding port of boiler installed, tighten can complete the installation.

3, when used, enable the level for the first time, you will need to open the drain valve, make the liquid will pass directly discharge valve, then open the valve on half a circle, make the quartz tube wall for a few minutes of preheating, especially in cold temperature of the environment, preheating time must be enough, at the same time in the preheated operation, operators should be located in the liquid level meter on the side, in order to prevent the accident from happening.

4, after preheating, close the drain valve, can open the valve at this time, the extent of the normal operation of the valves are open to, make the liquid level meter into the normal working condition.

5, if there is a need to be replaced in a state under the level of boiler operation, you need to pay attention to open the boiler on the cut-off valve, the cut-off on both sides of the exchange, then shut down the level of upper and lower valve, open the discharge valve, then the corresponding change.

Eleven, purposes and occasions of use:

Twelve, selection of coding:

13, design selection and ordering information:

1, model specifications;ZW - UGS series quartz tube liquid level meter;

2, name of medium: medium density;

3, measurement range, can also be referred to as the nominal length, namely the center distance of two flanges;

4, work pressure, work under pressure;

5, working temperature: measuring the temperature of the liquid;

6, material requirements: liquid material;

7, whether matching supply flange, bolts, nuts, valves, fittings, such as sealing washer;

8, flange standard: nominal size of the flange, the use of flanges is 3/4 "or DN25;

9, special requirements: before the order, please note, in detail, such as whether to bring far eastone, heat preservation jacket and so on.

After-sales service commitment:

Level 1, I companies sell products within twelve months appear quality problem, is responsible for free maintenance.

2, the warranty period, any quality problems such as the products of our company, my company is responsible for free repair or replacement.

3, the warranty period, such as user improper use, damaged products, my company is responsible for the maintenance, charge damage parts cost.

4, after the warranty period appear quality problem, my company is responsible for the maintenance, charge damage parts cost.

5, such as user need to my company site services, to users in the province I company service personnel to reach the site within 12 hours, fujian association of foreign languages and user reach the site within 48 hours.
