Cast steel turbine flowmeter

•

ZW-LL series Cast steel turbine flowmeter Mainly used for large diameter gas flow measurement, all k…

Productoverview:

ZW-LL series Cast steel turbine flowmeter Mainly used for large diameter gas flow measurement, all kinds of industrial liquid in the pipe and steam medium fluid. It is characteristic of small pressure loss, large measuring range, high accuracy, influence of the measuring condition of volume flow rate is almost not affected by fluid density, pressure, temperature, viscosity and other parameters, so no moving mechanical parts, high reliability, small amount of maintenance. The instrument parameters can work stably for a long time.

The utility model is characterized in that a metering chamber in the meter casing, the metering chamber has a pair or two pairs of tangent waist wheel rotation. In the outside of the casing and two meter coaxial search round a set of transmission gears meshing with each other, they make the two round the waist can be linked with each other.

ZW-LL series steel flowmeter in the structure, the outer legs and waist wheel flowmeter the inner wall of the shell surface can be composed of a certain volume of the "bucket" space. We called the measuring room".When the fluid flow through the flow meter in timing, the import and export of differential fluid pressure under the action of two. According to the positive direction of rotation of the waist wheel. The formation of a metering chamber enclosed by the waist wheel and the shell. The fluid metering chamber filled with a single volume of imports from the waist wheel is divided into continuous fluid.

Two, work principle:

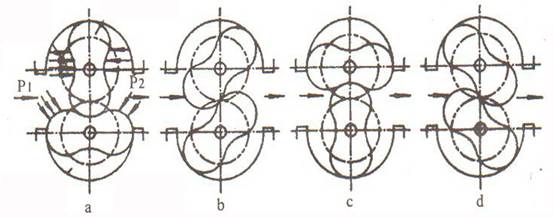

ZW-LL series steel flowmeter is measured when the fluid flows through the metering chamber, in the import and export of the formation of differential pressure flowmeter, this pressure waist wheel driven by rotation.At the same time through fixed at the waist on the axle of the driving gear, the two round of continuous rotation of the waist. With the rotation of the waist wheel, the metering chamber is discharged continuously through the liquid flowmeter. The amount of each liquid flow through the metering chamber volume is four times, the sealing mechanism through the coupling, reducer, reducer rotating number is transferred to the counter, the counter is indicating liquid instantaneous flow and cumulative flow. Install the transmitter in the counter mechanism that the sender of the waist belt. With the display meter or computer system can realize remote (quantitative, cumulative and instantaneous automatic measurement and control function). Use display instrument Classification Manual see.

Three, application of measurement:

ZW-LL, can be used for pure crude oil, heavy oil flow measurement of high viscosity liquid;

ZW-LL-D can be used to prevent sand sand flow measurement of crude oil, heavy oil and other high viscosity fluid;

Contact type flowmeter and ZW-LL-F stainless steel medium stainless steel material manufacturing, has strong corrosion resistance, can be used for flow measurement of corrosive liquid, especially for the chemical industry;

ZW-LY-C light oil type is especially suitable for light oil, diesel oil flow measurement of low viscosity fluid.

Four, main features:

1, high measurement accuracy, the basic error is generally up to plus or minus 0.2% to plus or minus 0.5%, special requirements up to plus or minus 0.1%, flow characteristics generally not affected by the flow state, nor by the Reynolds number size limit.

2, can be used for high viscosity liquid flow measurement

3, a wide range of measurement, the typical flow range of 5:1 to 10:1

4, the cumulative amount of fluid type wheel counter, without external energy, the use of instant noodles counter cumulative flow double display, one of which can be reset to zero, the convenience of users in the case of continuous measurement.

5, the measurement between components without contact, no wear, long service life.

6, large caliber flowmeter and the rotor, reduce running noise and vibration meter.

Five, technical parameters:

1, allow the basic error: + 0.1%, + 0.2%, + 0.5%;

2, the nominal diameter of DN (mm): 15~300;

3, nominal pressure PN (M.Pa): cast iron, stainless steel (A) (P) 1, 1.6, 2.5, 4, 6.3; 2.5, 4 cast steel (E), 6.3, 9.6;

4, the measured liquid temperature:

A. low temperature: -40 ~ +60 c;

B. at room temperature -10 to +80 DEG c;

The temperature of C. -10 to +200 DEG c;

D. high temperature -10 to +300 DEG c;

5, the measured liquid viscosity (mPa.s): 0.3 ~ 50000;

6, pipe connection: GB/T9118-2000 (Chinese; NIST (American Standard) standard); BSPT (BSP): NPT (American pipe thread);

7, on-site display: 99999999 L (cumulative flow) of 9999999.9 L (single flow); 9999999.9 L (transient flow);

8, output signals: pulse signal, 4 ~ 20mA, 4 ~ 1-5V, 20mA +HART, MODBUS RS232, RS485 protocol support communication (Ren Xuan);

9, explosion-proof grade: EXiaIIBT5EXiaIICT5 protection grade: IP65.

Six, installation and use:

1, flow meter should be installed before the filter, the meter with the direction of arrow.

2, when the measured liquid containing gas, flow meter should be installed before the gas separator.

3, whether the pipeline is vertical or horizontal installation, but the waist wheel flowmeter installation into a horizontal position (i.e. dial should be perpendicular to the ground).

4, the correct installation of flowmeter in the case, if it is not easy to see the readings, the counter rotating 180 degrees or 90 degrees can be.

5, the throttle valve should be installed in the meter inlet opening and closing valve is installed at the outlet, the use of open or close the valve to start slowly, do not suddenly open valve.

6, prohibited the use of steam flowmeter by line sweep.

7, in the continuous use of departments, need to add a bypass pipeline flowmeter.

Before the installation of 8, flow meter, pipeline flushing, flushing the pipe (alternative meter position) prevent the welding slag and other debris into the meter.

9, check the water meter is composed of cast iron, cast steel.

10, when using the size of the flow meter shall not exceed the technical requirements. The flowmeter work on Zui flow 70~80% was better.

11, if the measured liquid is corrosive, need to use stainless steel flowmeter, if corrosive, need to use 0Crl8Ni12MO2Ti material flow meter.

Seven, installation notes:

1, before installation shall not open the inlet flow, the outlet seal two;

2, when the pipe is installed on the device more, should be put on after the installation of flow meter;

3, where conditions permit, the pipeline must be high pressure purge before installation;

4, the installation should at the interface of iron pins, careful removal of burr;

In front of the 5 meter must be installed, filter, filter media measurement; measurement of liquid, if containing gas, optional getter device flowmeter, ensure the measuring precision of flowmeter;

6, installation modes, horizontal vertical installation can be installed vertically progress under the lower upper is not affected, but the meter shall not be reversed, anti loaded, opposite directions, waist wheel reversal, because the rotation between different gap design will damage the waist wheel;

7, on the lower straight pipe section, but must set aside to install filtering device enough distance;

8, the waist wheel rotation by fluid pressure is the force of viscous medium, when the measurement is too high, affect the measuring precision of flowmeter;

To avoid the above points, the measurement precision can achieve better flowmeter.

Eight, technical performance:
